Create and Edit Parcels

A Parcel refers to a defined unit or section of land that is recorded within the system for the purposes of managing land agreements, ownership, and rights associated with Land Management projects. Each Parcel represents a unique piece of property with specific geographic boundaries, ownership details, and legal attributes, enabling users to organize and track relevant data, including landowner information, usage rights, agreements and associated engagements (communications, issues, commitments). A parcel can have a geometry associated with it which can be displayed on the map.

Parcels typically refer to cadastral information but can also be used to add aboriginal land boundaries or other types of land entities for which you need to engage with stakeholders and over which you will negotiate agreements.

You can also create parcels in batch using the Excel template and import feature.

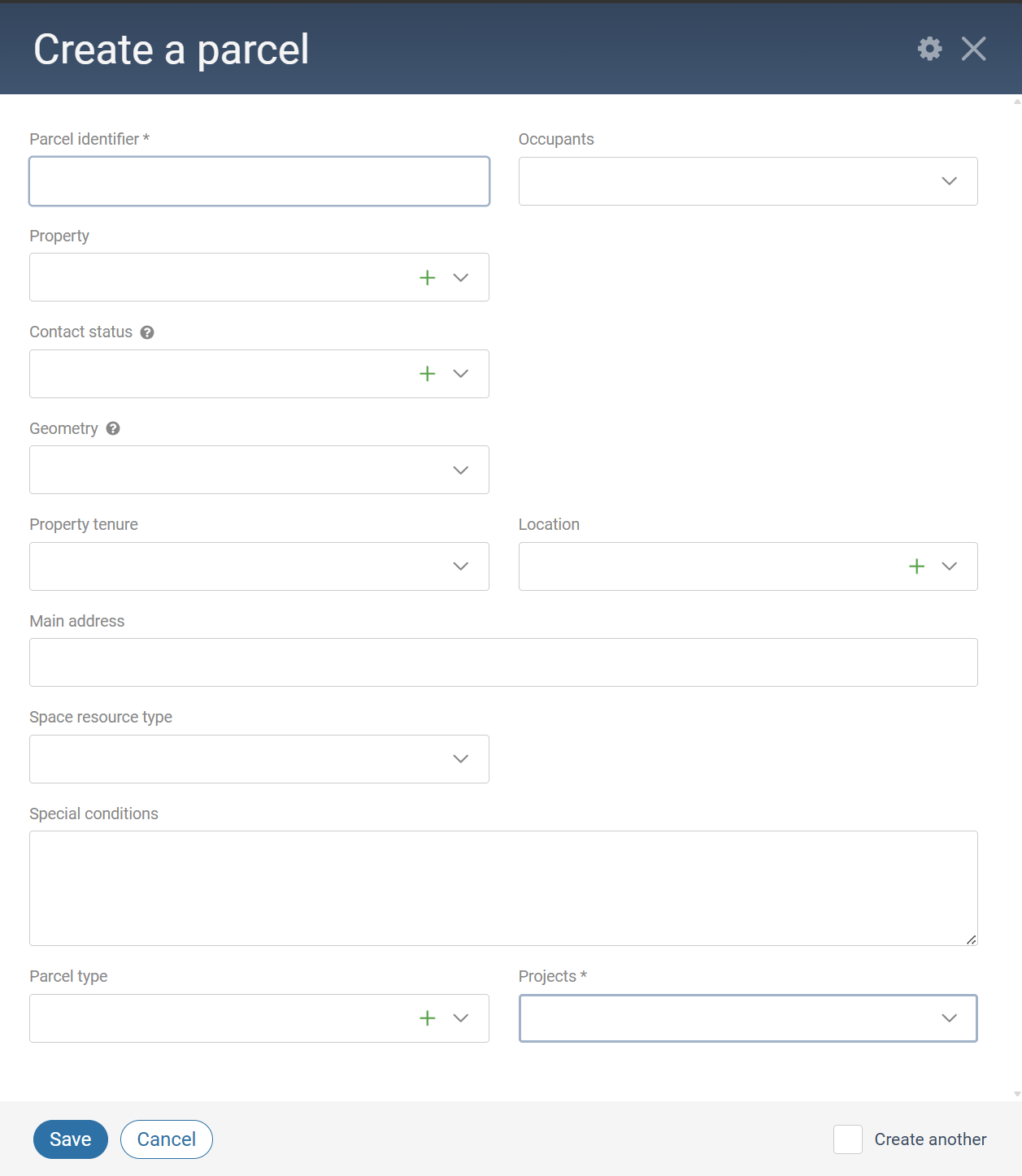

Create Parcels Manually

  1. Navigate to Parcels in Land Access.
  2. Click the +Create button in the upper left corner of the register.
  3. Fill in the mandatory fields:
    • Parcel identifier: This is the the name used to identify the parcel. This identifier needs to be unique across the system.
    • Projects: This indicates the project to which this parcel belongs to.
  4. Fill in additional fields as needed;
    • Property: If the Properties register is active, you can create a new property or select an existing one in which this parcel will be included.
    • Contact status: This is the assessment on the possibility of negotiating with the land owners.
    • Geometry: This field lets you select a previously imported geometry that covers this parcel. You can the view the physical representation using the map tool.
      Note that a geometry can only be used in one parcel and you will need to re-import the geometry with a new name or unlink the geometry from its current parcel if you want to re-use it.
    • Location: This indicates the location, defined in the system, where this parcel is located. You can select an existing one from the drop-down list or create a new one.
    • Main address: This is the main address linked to the parcel.
    • Parcel type: This indicates the type of parcel. Values in this drop-down list are populated from the Parcel type, Parcel type of exclude data dictionary.
  5. Click the Save button.
    You can also flag Create another to create a new parcel.

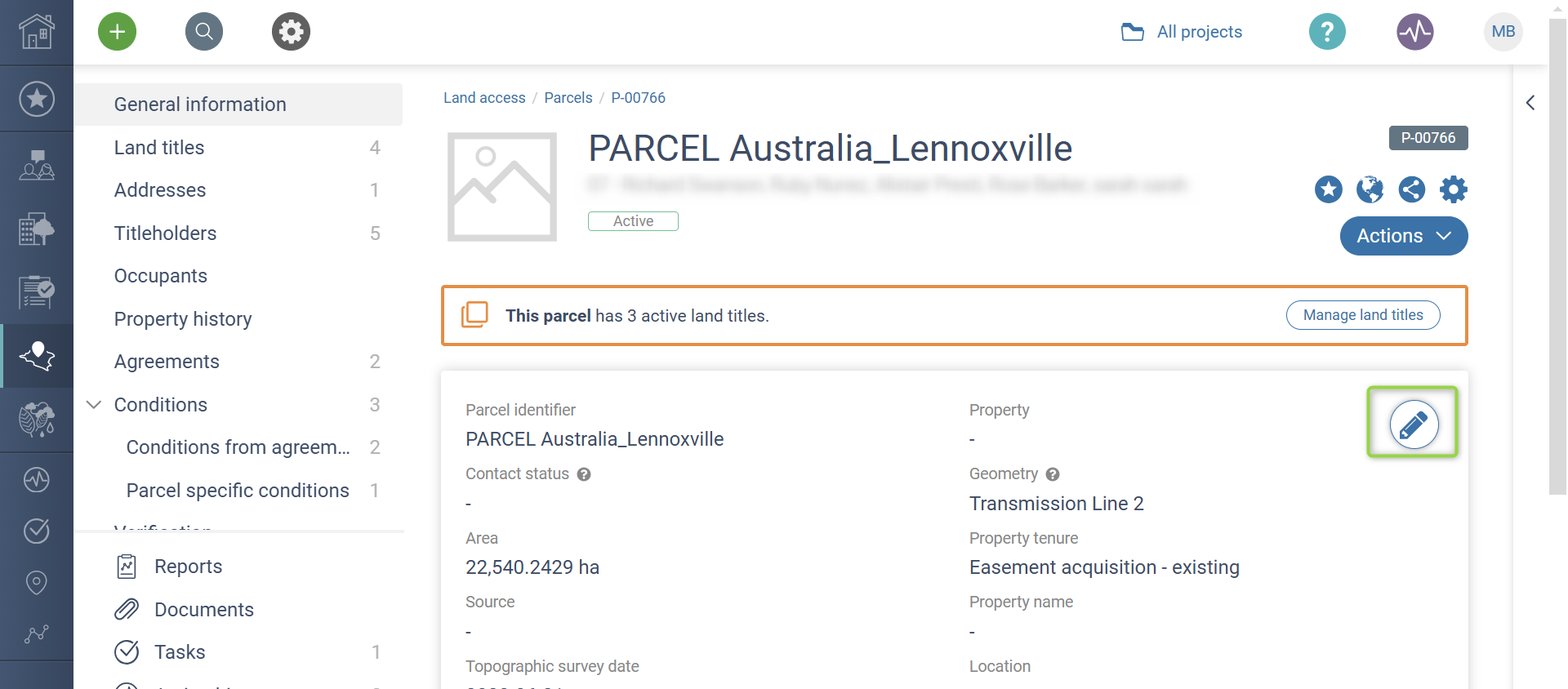

Edit parcels

  1. Navigate to Parcels in Land Access.
  2. Select and open the parcel which you want to edit.
  3. In the left hand menu, select General information.
  4. Click the Edit (pencil) icon in the upper right corner of the information page.
  5. Modify the parcel information as needed.
  6. Click the Save button.
