Once Borealis displays the discovered layers, superusers can select the layers they want to make available.
Supported layer selection options include:
- Individual selection: Select only the specific layers you want to make available.
- Bulk selection: Select all layers in a single action using Select all.
Note: For ESRI Shapefile and ReportAll USA sources contain a single layer and Borealis automatically selects the layer.
After selecting the layers, configure the settings that control how they appear in Borealis:
| Setting | What it controls | Notes |
| Feature display label | Determines which attribute identifies a feature in the UI | Choose a field that is meaningful to end users |
| Visibility access | Controls who can access the layer. | Set the visibility to Global for all users or Private for the owner and superusers. |
| Layer styling | Controls the visual appearance of the layer | Configure color, transparency, minimum zoom level, and point icon where applicable |
Configure Layer Settings
Configure how the layer appears on the map using the settings in the Style tab.

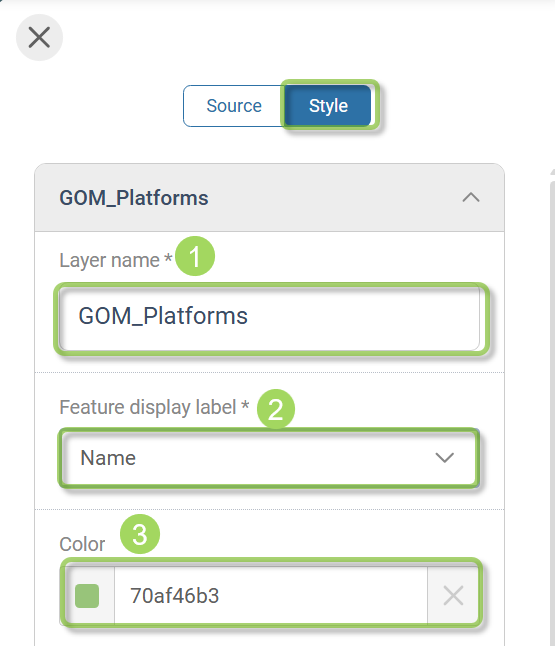

- Edit the Layer name if required.
- Select the Feature display label. This setting determines which attribute is displayed to help users identify and select a feature when multiple features are present at the selected location.
- Select the Color for the layer.

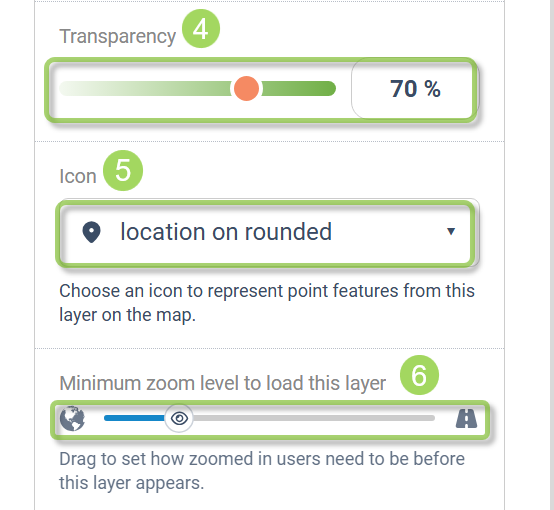

- Select the Transparency for the layer.
- Select an Icon to represent features on the map.
Note: This option is available only for layers with point geometries. - Select the Minimum zoom level to load this layer.

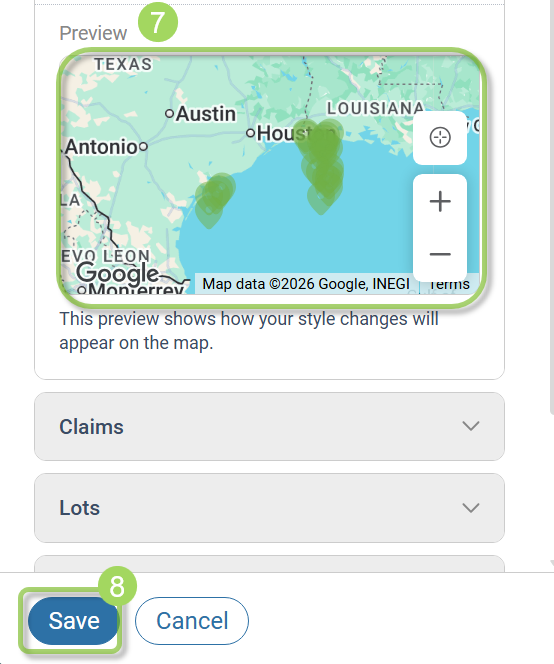

💡Tip: Drag the slider to set the zoom threshold. This prevents dense external spatial data from loading when zoomed out, helping improve map rendering performance. - Preview your changes.
- Click Save.
The selected layer is displayed on the map with the configured style settings.
ℹ️ Related topic: See Add, Edit, or Delete an External GIS Source for instructions on managing external GIS sources.
